NRF1 monoclonal antibody

CUT&Tag grade Abs

ChIP-seq grade Abs

ChIP grade Abs

Negative IgG control

Antibody portal

Antibodies

Catalog Number

Format

Price

C15200013

50 μg

$380.00
Bulk order

Other format

C15200013-10

10 µg

Monoclonal antibody raised in mouse against human NRF1 (Nuclear Respiratory Factor 1), using a recombinant protein.

Lot	001
Concentration	2.2 μg/μl
Species reactivity	Human
Type	Monoclonal
Purity	Protein A purified
Host	Mouse
Precautions	This product is for research use only. Not for use in diagnostic or therapeutic procedures.

Applications	Suggested dilution	References
ChIP/ChIP-seq ^*	2 μg/ChIP	Fig 1, 2
Western Blotting	1:1,000	Fig 3

^* Please note that the optimal antibody amount per IP should be determined by the end-user. We recommend testing 1-10 μg per IP.

Validation data

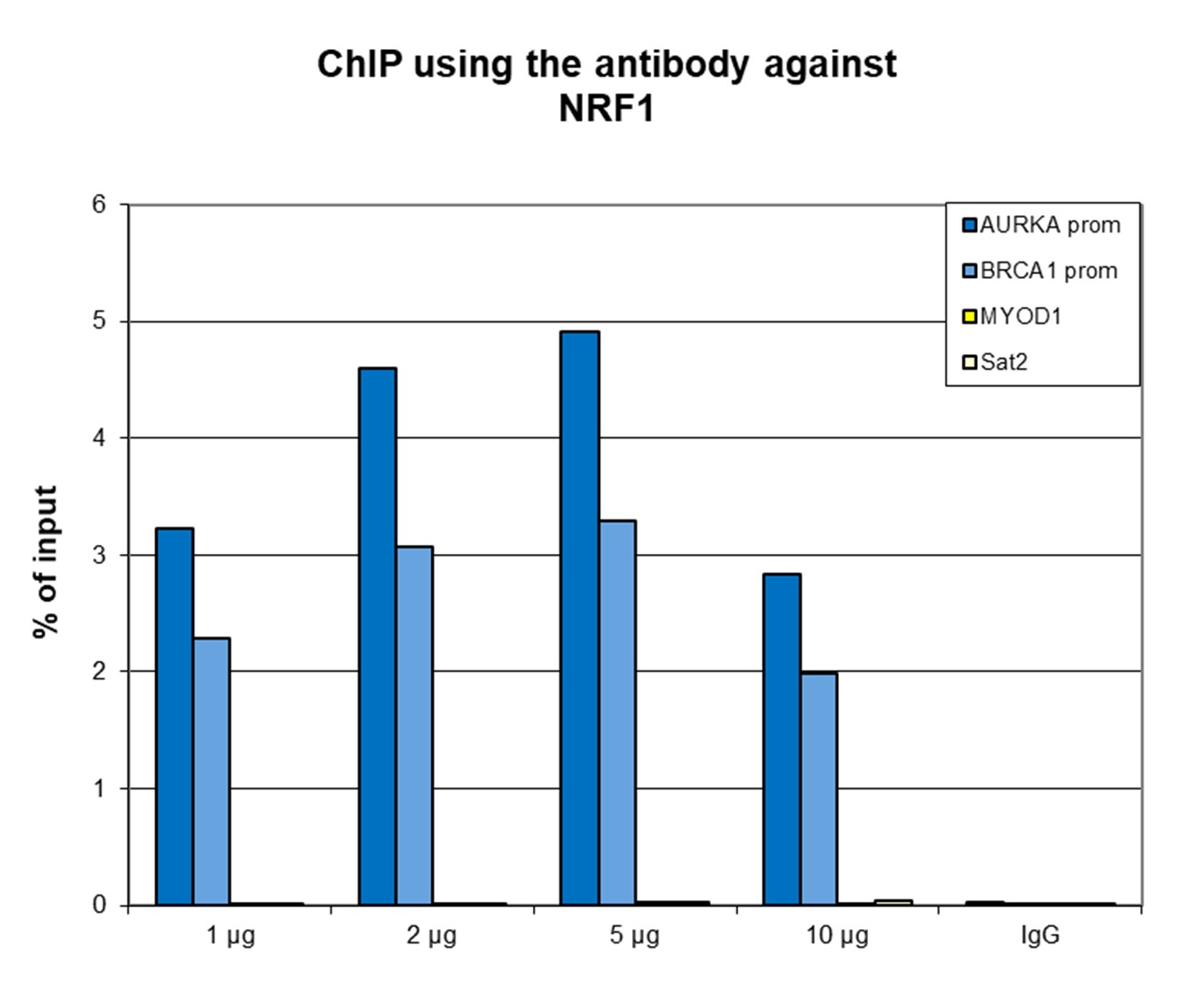

Figure 1. ChIP results obtained with the Diagenode monoclonal antibody directed against NRF1
ChIP was performed using K562 cells, the Diagenode monoclonal antibody against NRF1 (Cat. No. C15200013) and optimized PCR primer sets for qPCR. ChIP was performed with the “iDeal ChIP-seq” kit (cat. No. C01010055), using sheared chromatin from 4 million cells. A titration of the antibody consisting of 1, 2, 5 and 10 μg per ChIP experiment was analysed. IgG (2 μg/IP) was used as negative IP control. Quantitative PCR was performed with primers for the BRCA1 and AURKA promoters, used as positive controls, and for the coding region of the inactive MYOD1 gene and the Sat2 satellite repeat, used as negative controls. Figure 1 shows the recovery, expressed as a % of input (the relative amount of immunoprecipitated DNA compared to input DNA after qPCR analysis).

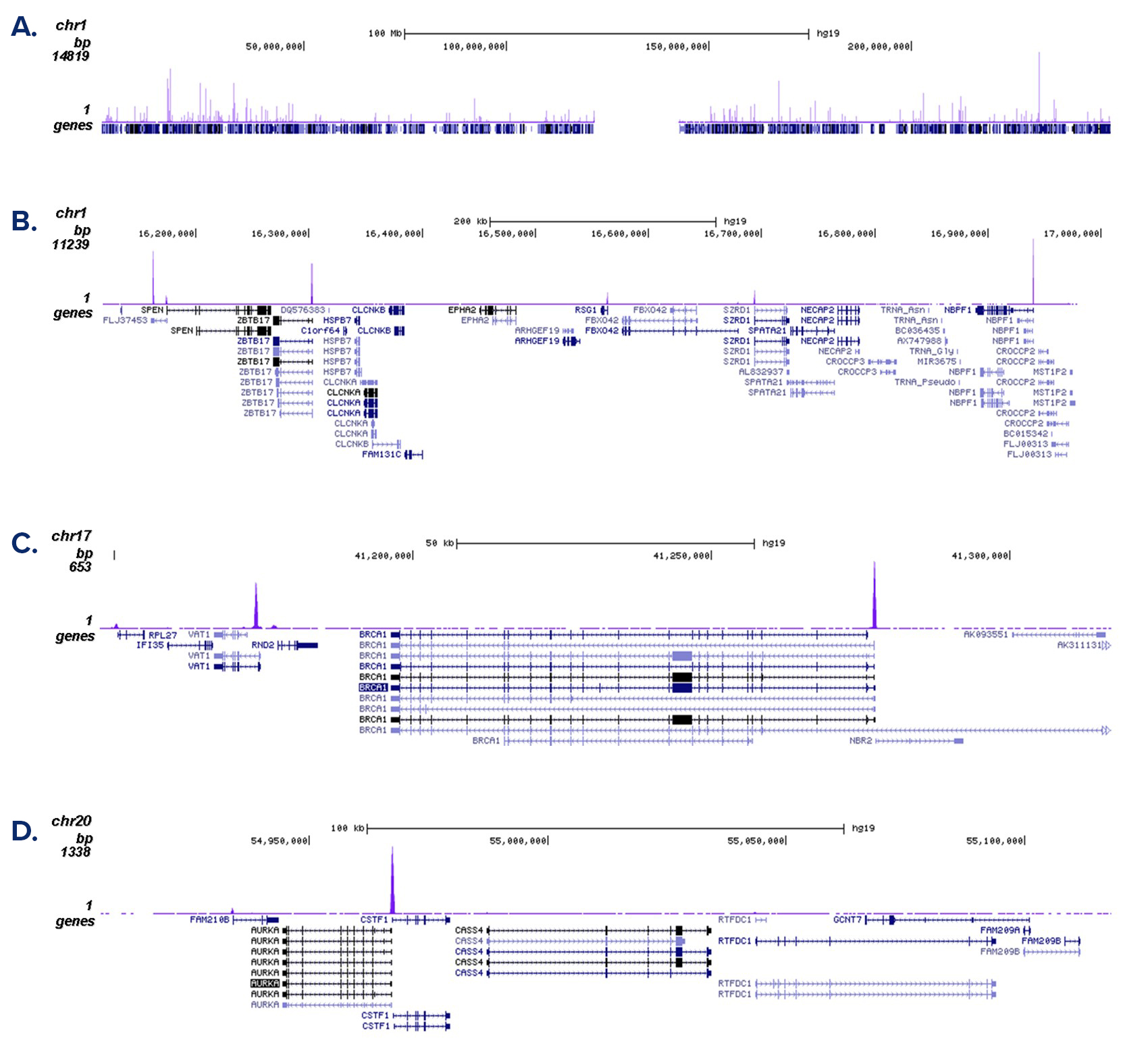

Figure 2. ChIP-seq results obtained with the Diagenode monoclonal antibody directed against NRF1
ChIP was performed with 2 μg of the Diagenode antibody against NRF1 (Cat. No. C15200013) on sheared chromatin from 4 million K562 cells as described above. The IP’d DNA was subsequently analysed on an Illumina HiSeq 2000. Library preparation, cluster generation and sequencing were performed according to the manufacturer’s instructions. The 50 bp tags were aligned to the human genome using the BWA algorithm. Figure 2 shows the peak distribution along the complete sequence and a 700 kb region of chromosome 1 (figure 2A and B) and in two regions surrounding the BRCA1 and AURKA positive control genes (figure 2C and D).

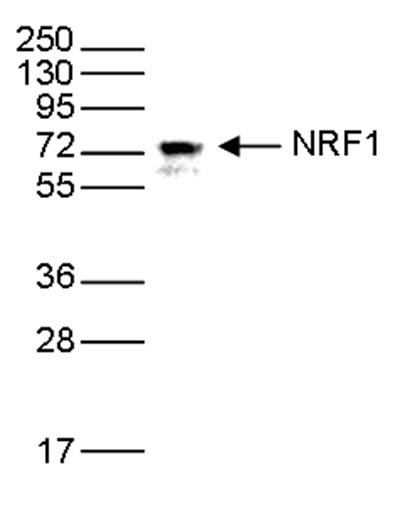

Figure 3. Western blot analysis using the Diagenode monoclonal antibody directed against NRF1
Whole cell extracts from K562 cells were analysed by Western blot using the Diagenode antibody against NRF1 (Cat. No. C15200013) diluted 1:1,000 in TBST containing 5% milk powder. The position of the protein of interest is indicated on the right; the marker (in kDa) is shown on the left.
Target Description
NRF1 (UniProt/Swiss-Prot entry Q16656) is a transcription factor which activates the expression of some key metabolic genes regulating cellular growth and nuclear genes required for respiration, heme biosynthesis, and mitochondrial DNA transcription and replication. NRF1 has also been associated with the regulation of neurite outgrowth.

資料
NRF1 monoclonal antibody DATASHEET
Datasheet of the NRF1 monoclonal antibody Download
