Request a quote for a bulk order for Pol II S5p Antibody. Please fill out the form here below. Your local sales account manager will get in touch with you shortly and send you a quotation based on your requirements.
Alternative names: POLR2A, RPB1, POLR2, RPOL2
Monoclonal antibody raised in mouse against the YSPTSPS repeat in the B1 subunit of RNA polymerase II, phosphorylated at Ser5 of the repeat sequence.
| Lot | 001-14 |
|---|---|
| Concentration | 1.0 µg/µl |
| Species reactivity | Human |
| Type | Monoclonal ChIP grade, ChIP-seq grade |
| Purity | Affinity purified monoclonal antibody in PBS containing 0.05% azide. |
| Host | Mouse |
| Storage Conditions | Store at -20°C; for long storage, store at -80°C. Avoid multiple freeze-thaw cycles. |
| Precautions | This product is for research use only. Not for use in diagnostic or therapeutic procedures. |
| Applications | Suggested dilution | References |
|---|---|---|
| ChIP/ChIP-seq * | 1-2 μg/ChIP | Fig 1, 2 |
| ELISA | 1:3,000 | Fig 3 |
| Western Blotting | 1:1,000 | Fig 4, 5 |
| Immunofluorescence | 1:500 | Fig 6 |
* Please note that the optimal antibody amount per IP should be determined by the end-user. We recommend testing 1-5 μg per IP.
Figure 1. ChIP results obtained with the Diagenode monoclonal antibody directed against Pol II S5p
ChIP assays were performed using human HeLa cells, the Diagenode monoclonal antibody against Pol II S5p (Cat. No. C15200007) and optimized PCR primer pairs for qPCR. ChIP was performed with the “iDeal ChIP-seq” kit (Cat. No. C01010051), using sheared chromatin from 1 million cells. A titration consisting of 1, 2, 5 and 10 μg of antibody per ChIP experiment was analyzed. IgG (2 μg/IP) was used as a negative IP control. Quantitative PCR was performed with primers specific for the promoter and the coding region of the constitutively expressed GAPDH and ACTB genes, used as positive controls, and for exon 2 of the inactive myoglobin (MB) gene and the Sat2 satellite repeat, used as negative controls. Figure 1 shows the recovery, expressed as a % of input (the relative amount of immunoprecipitated DNA compared to input DNA after qPCR analysis).
Figure 2. ChIP-seq results obtained with the Diagenode monoclonal antibody directed against Pol II S5p
ChIP was performed on sheared chromatin from 1 million HeLaS3 cells using 1 μg of the Diagenode antibody against Pol II S5p (Cat. No. C15200007) as described above. The IP’d DNA was subsequently analysed on an Illumina Genome Analyzer. Library preparation, cluster generation and sequencing were performed according to the manufacturer’s instructions. The 36 bp tags were aligned to the human genome using the ELAND algorithm. Figure 2 shows the peak distribution along the complete sequence and a 150 kb region of the X-chromosome (figure 2A and B, respectively), and in a two genomic regions surrounding the GAPDH and ACTB positive control genes (figure 2C and D).

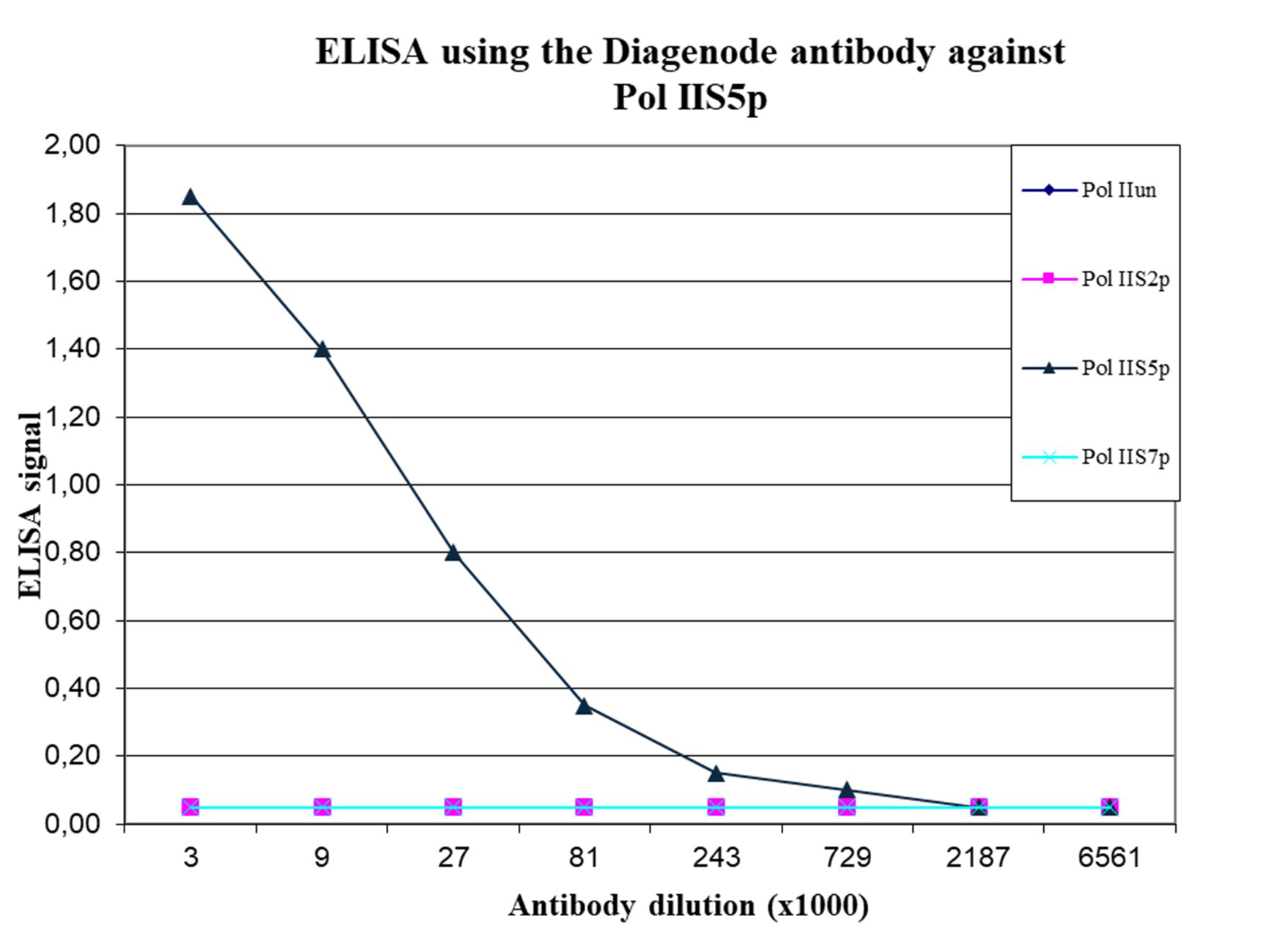

Figure 3. Cross reactivity of the Diagenode monoclonal antibody directed against Pol IIS5p
To test the specificity an ELISA was performed using a serial dilution of the Diagenode monoclonal antibody against Pol IIS5p (Cat. No. C15200007). The wells were coated with peptides containing the unmodified C-terminal repeat sequence as well as different phosphorylated peptides. Figure 3 shows the specificity of the antibody for the S5 phosphorylation.
Figure 4. Western blot analysis using the Diagenode monoclonal antibody directed against Pol II S5p
Nuclear extracts (25 μg) from HeLa cells were analysed by Western blot using the Diagenode monoclonal antibody against Pol II S5p (Cat. No. C15200007) diluted 1:1,000 in TBS-Tween containing 5% skimmed milk. The position of the protein of interest is indicated on the right; the marker (in kDa) is shown on the left.
Figure 5. Western blot analysis using the Diagenode monoclonal antibody directed against Pol II S5p
Whole cell extracts (40 μg) from HeLa cells transfected with Pol II siRNA (lane 2) and from an untransfected control (lane 1) were analysed by Western blot using the Diagenode antibody against Pol II S5p (Cat. No. C15200007) diluted 1:1,000 in TBS-Tween containing 5% skimmed milk. The position of the protein of interest is indicated on the right; the marker (in kDa) is shown on the left.
Figure 6. Immunofluorescence using the Diagenode monoclonal antibody directed against Pol II S5p
HeLa cells were stained with the Diagenode antibody against Pol II S5p (Cat. No. C15200007) and with DAPI. Cells were fixed with methanol and blocked with PBS/TX-100 containing 5% normal goat serum and 1% BSA. The cells were immunofluorescently labelled with the Pol II S5p antibody (left) diluted 1:500 in blocking solution followed by an anti-mouse antibody conjugated to Alexa594. The middle panel shows staining of the nuclei with DAPI. A merge of the two stainings is shown on the right.
RNA polymerase II (pol II) is a key enzyme in the regulation and control of gene transcription. It is able to unwind the DNA double helix, synthesize RNA, and proofread the result. Pol II is a complex enzyme, consisting of 12 subunits, of which the B1 subunit (UniProt/Swiss-Prot entry P24928) is the largest. Together with the second largest subunit, B1 forms the catalytic core of the RNA polymerase II transcription machinery.
| ELISA Enzyme-linked immunosorbent assay. Read more |
| WB Western blot : The quality of antibodies used in this technique is crucial for correct and specific protein identification. Diagenode offers huge selection of highly sensitive and specific western blot-validated antibodies. Learn more about: Load... Read more |
| IF Immunofluorescence: Diagenode offers huge selection of highly sensitive antibodies validated in IF. Immunofluorescence using the Diagenode monoclonal antibody directed against CRISPR/Cas9 HeLa cells transfected with a Cas9 expression vector (... Read more |
| ChIP-seq (ab) Read more |
| ChIP-qPCR (ab) Read more |
| siRNA Knockdown Epigenetic antibodies you can trust! Antibody quality is essential for assay success. Diagenode offers antibodies that are actually validated and have been widely used and published by the scientific community. Now we are adding a new level o... Read more |
| Datasheet Polll-S5p C15200007 DATASHEET Datasheet description | Download |
| Antibodies you can trust POSTER Epigenetic research tools have evolved over time from endpoint PCR to qPCR to the analyses of lar... | Download |
| Epigenetic Antibodies Brochure BROCHURE More than in any other immuoprecipitation assays, quality antibodies are critical tools in many e... | Download |
| Pol II S5p antibody SDS GB en | Download |
| Pol II S5p antibody SDS US en | Download |
| Pol II S5p antibody SDS DE de | Download |
| Pol II S5p antibody SDS JP ja | Download |
| Pol II S5p antibody SDS BE nl | Download |
| Pol II S5p antibody SDS BE fr | Download |
| Pol II S5p antibody SDS FR fr | Download |
| Pol II S5p antibody SDS ES es | Download |
 How to properly cite this product in your workDiagenode strongly recommends using this: Pol II S5p Antibody (Diagenode Cat# C15200007 Lot# 001-14). Click here to copy to clipboard. Using our products in your publication? Let us know! |
CDK7 Inhibition is Effective in all the Subtypes of Breast Cancer: Determinants of Response and Synergy with EGFR Inhibition. |
Transcription Elongation Can Affect Genome 3D Structure. |
Meg3 Non-coding RNA Expression Controls Imprinting by Preventing Transcriptional Upregulation in cis. |
CDK8/19 Mediator kinases potentiate induction of transcription by NFκB |
Functional incompatibility between the generic NF-κB motif and a subtype-specific Sp1III element drives the formation of HIV-1 subtype C viral promoter |
